Projecta 12V AUTOMATIC 8A 6 STAGE BATTERY CHARGER
PART NO PC800
Projecta 8A Pro-Charge 12volt Battery Charger
This 6 stage Battery Charger was designed with the home handy-man or DIYer in mind. Made for a range of 12 volt lead acid battery options. The PC800 is a fully automatic battery charger with 6 charging stages and is designed to charge a range of recreational vehicles, cars and 4WDs. The benefit of the automatic charge is that you can clear your head for a few hours and leave the charger connected to the battery indefinitely with no chance of overcharging. The PC800 charger is suitable for a range of 12 volt automotive, marine and calcium and deep cycle batteries. The sophisticated electronic monitoring system provides a reduction in charging time and delivers a professional result.
If you're looking at charging a calcium battery back to life, the Calcium Mode changes the profile of the charge to deliver a complete and proper job. If your calcium battery has been deeply discharged and requires an equalization charge to restore a full electrolyte reading, then this charger is for you! For those batteries that are tired and worn, the Rejuvenation Mode breaks down sulphation and revitalizes the cells of the battery to increase performance. It's a lightweight and compact unit that definitely doesn't compromise on performance. The PC800 is spark-free and is protected against accidental reverse connection making them very safe to use.
This unit comes with optional side wings to easily mount to the workbench or garage wall. Remember to give adequate ventilation to the cooling vents if you choose to mount by providing at least 10cm clearance. The battery charger's interface will also allow you to control the charge rates and charge mode, to give you complete control.
FEATURES
Adjustable Output
Suitable for a wide range of different size batteries
Calcium Mode
Adjusts the charging profile to suit calcium batteries
Rejuvenation Mode
Revitalizes tired batteries, increasing battery life and performance (subject to battery condition)
Side Mounting Wings
Optional mounting wings for permanent installation
Safer Charging
Spark free and polarity protected
SPECIFICATIONS
PART NO
PC800
TYPE
6 Stage Battery Charger
INPUT
240VAC, 50Hz, 240W
OUTPUT
12V
OUTPUT CURRENT
2, 4, 8A
MINIMUM START VOLTAGE
3.0V
BACK DRAIN
1mA
APPROVALS
Electrical Safety, EMC

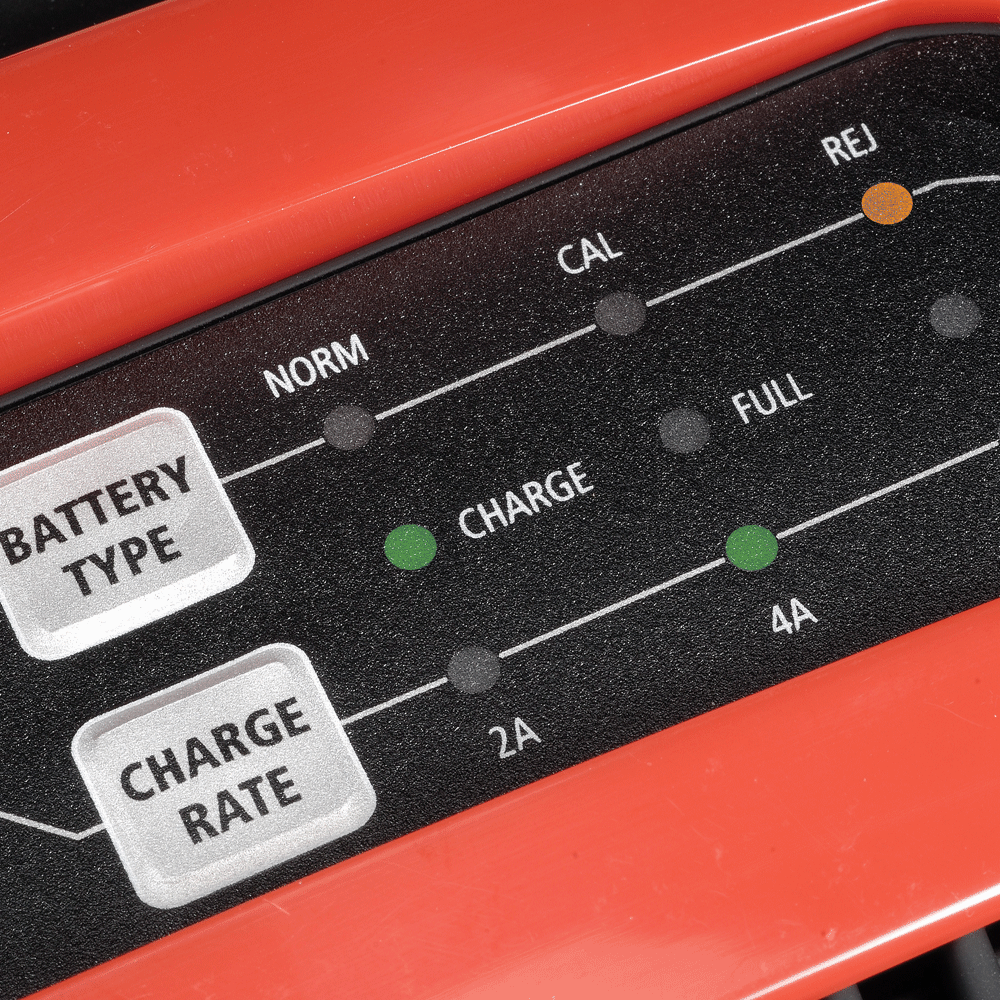

L.E.D. CHARGE INDICATION
BLUE LIGHT ON
Bulk and absorption charging
GREEN LIGHT ON
Fully charged and maintaining,
no need to turn off
AMBER LIGHT ON
Rejuvenation process occurring
RED LIGHT ON
Indicates faulty battery
BATTERY CHARGE TIMES
PC800
VOLTAGE
BATTERY SIZE
CHARGE TIME
AUTOMOTIVE
12V
80–1000CCA
7–24 hrs
MARINE
12V
110–1300MCA
7–24 hrs
DEEP CYCLE
12V
14–160Ah
7–24 hrs
